Devel::ptkdb is a visual Perl debugger that uses Perl/Tk for the user interface and requires a windows system like X Windows or Windows to run.

To debug a plain Perl script with Devel::ptkdb, invoke it as:

panic% perl -d:ptkdb

The Tk application will be loaded. Now you can do most of the debugging you did with the command-line Perl debugger, but using a simple GUI to set/remove breakpoints, browse the code, step through it, and more.

With the help of Devel::ptkdb, you can debug your CGI scripts running under mod_cgi (we'll look at mod_perl debugging later). Be sure that the web server's Perl installation includes the Tk package. To enable the debugger, change your shebang line from:

#!/usr/bin/perl -Tw


#!/usr/bin/perl -Twd:ptkdb

You can debug scripts remotely if you're using a Unix-based server and if the machine where you are writing the script has an X server. The X server can be another Unix workstation, or a Macintosh or Win32 platform with an appropriate X Windows package. You must insert the following BEGINsubroutine into your script:

    $ENV{'DISPLAY'} = "localhost:0.0" ;

You may need to replace the localhost value with a real DNS or IP address if you aren't working at the machine itself. You must be sure that your web server has permission to open windows on your X server (see the xhost manpage for more information).

Access the web page with the browser and request the script as usual. The ptkdb window should appear on the monitor if you have correctly set the $ENV{'DISPLAY'} variable (see Figure 21-2). At this point you can start debugging your script. Be aware that the browser may time out waiting for the script to run.

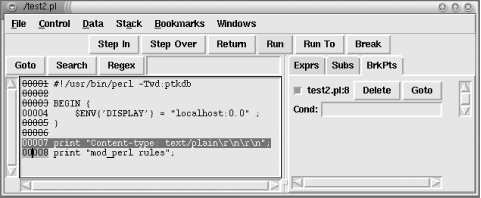

Figure 21-2

Figure 21-2. Devel::ptkdb Interactive Debugger

To expedite debugging you may want to set your breakpoints in advance with a .ptkdbrc file and use the $DB::no_stop_at_start variable. For debugging web scripts, you may have to have the .ptkdbrc file installed in the server account's home directory (e.g., ~httpd) or whatever username the web server is running under. Also try installing a .ptkdbrc file in the same directory as the target script.

ptkdb is available from CPAN:
